plan-trip

Plan a Train Trip on NS (Dutch Railways)

Purpose

Plan a domestic (or international-via-NS) train journey between two stations on the NS journey planner at ns.nl and return the available travel options: per-option departure/arrival times, total travel time, departure track, number of transfers, train type(s) (Intercity / Sprinter / Intercity direct / Eurocity Direct / metro / bus legs), real-time delays, crowding indication, and any fare/supplement notes. Read-only — never books, buys, or checks in.

When to Use

• "What trains run from Amsterdam Centraal to Rotterdam Centraal around 9am tomorrow?"
• "When do I need to leave Eindhoven to arrive at Schiphol Airport by 17:00?"
• Comparing departure options, transfer counts, or travel times between two Dutch stations.
• Surfacing live delays / disruptions on a specific route at a specific time.
• Any flow that needs train travel options without purchasing a ticket.

Workflow

The NS journey planner is an Angular SPA whose state is fully encoded in the URL hash — so the optimal path is to construct a deep-link URL directly and read the rendered results, with zero form interaction. A bare Browserbase session (no stealth, no proxy) is sufficient: the homepage and the planner load cleanly and the underlying trips API returns 200 without geo-restriction (verified from a non-NL outbound IP over two iterations). The site sits behind Akamai (ak_bmsc cookie) but did not challenge plain navigation.

1. Build the deep-link URL

https://www.ns.nl/en/journeyplanner/#/?vertrek=<FROM>&vertrektype=treinstation&aankomst=<TO>&aankomsttype=treinstation&type=<vertrek|aankomst>&tijd=<YYYY-MM-DDTHH:mm>&firstMileModality=PUBLIC_TRANSPORT&lastMileModality=PUBLIC_TRANSPORT

Use the English planner (/en/journeyplanner/) for English UI labels; the Dutch planner lives at /reisplanner/ and uses the identical param names.

2. Navigate and wait for the SPA to render

browse open "<deep-link>" --remote --session "$sid"
browse wait load --remote --session "$sid"
browse wait timeout 5000 --remote --session "$sid"   # Angular fetches + renders trip cards 2-5s after load

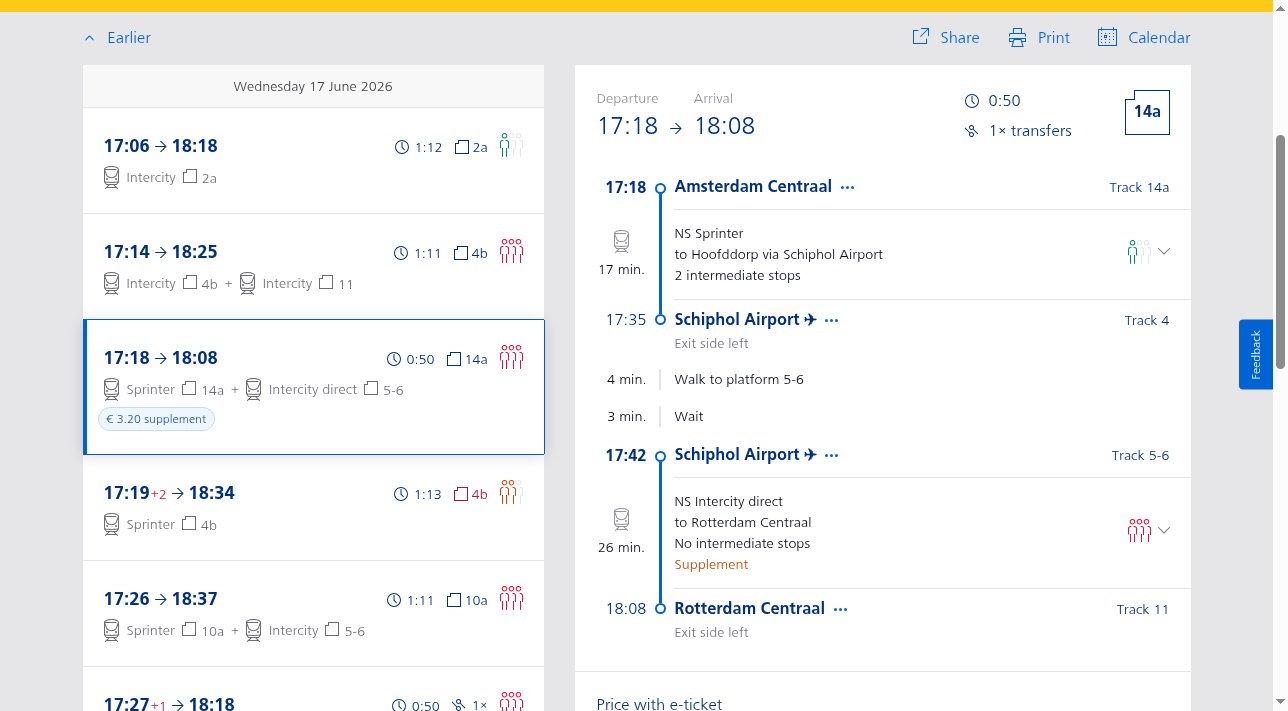

3. Read the results

browse snapshot --remote --session "$sid"

Each travel option appears as a single accessibility-tree StaticText summary with a predictable shape:

departure 17:18 arrival 18:08 travel time 0:50 track 14a You travel with Sprinter Intercity direct
departure 17:19 with 2 minutes delay arrival 18:34 travel time 1:13 track 4b You travel with Sprinter
Shorter train, extra busy and possibly full departure 17:27 with 1 minute delay arrival 18:18 travel time 0:50 with 1 time transfers You travel with metro line 52 Intercity direct

Parse from that string:

• departure HH:MM / arrival HH:MM / travel time H:MM
• track <n> → departure track/platform (may be absent for some itineraries — emit null)
• with N minute(s) delay → real-time delay in minutes (absent ⇒ 0)
• with N time transfers → transfer count (absent ⇒ 0)
• You travel with <…> → the train/modality types in order (e.g. Intercity, Sprinter, Intercity direct, Eurocity Direct, metro line 52)
• Crowding prefix such as Shorter train, extra busy and possibly full → crowding note
• A leg/option marked Supplement (e.g. Intercity direct, Eurocity Direct) carries a surcharge — expand "Show details" to read the exact amount (e.g. €3.20).

For full per-leg detail (intermediate stops, walk-to-platform transfers, per-leg tracks, fare breakdown like €20.20 full / €12.12 off-peak), click an option's "Show details" button and re-snapshot.

4. Notes on result windowing

Results are anchored on tijd: for type=vertrek the list starts at/just after the requested time; for type=aankomst the list ends at/just before it (last option's arrival ≤ requested time, verified). A few earlier options may be hidden behind an "Earlier travel options" control — click it only if you need departures before the anchor.

Browser fallback (form interaction)

If a deep link ever fails to populate (e.g. an ambiguous station name that doesn't auto-resolve), drive the form:

1. browse open "https://www.ns.nl/en/journeyplanner/#/".

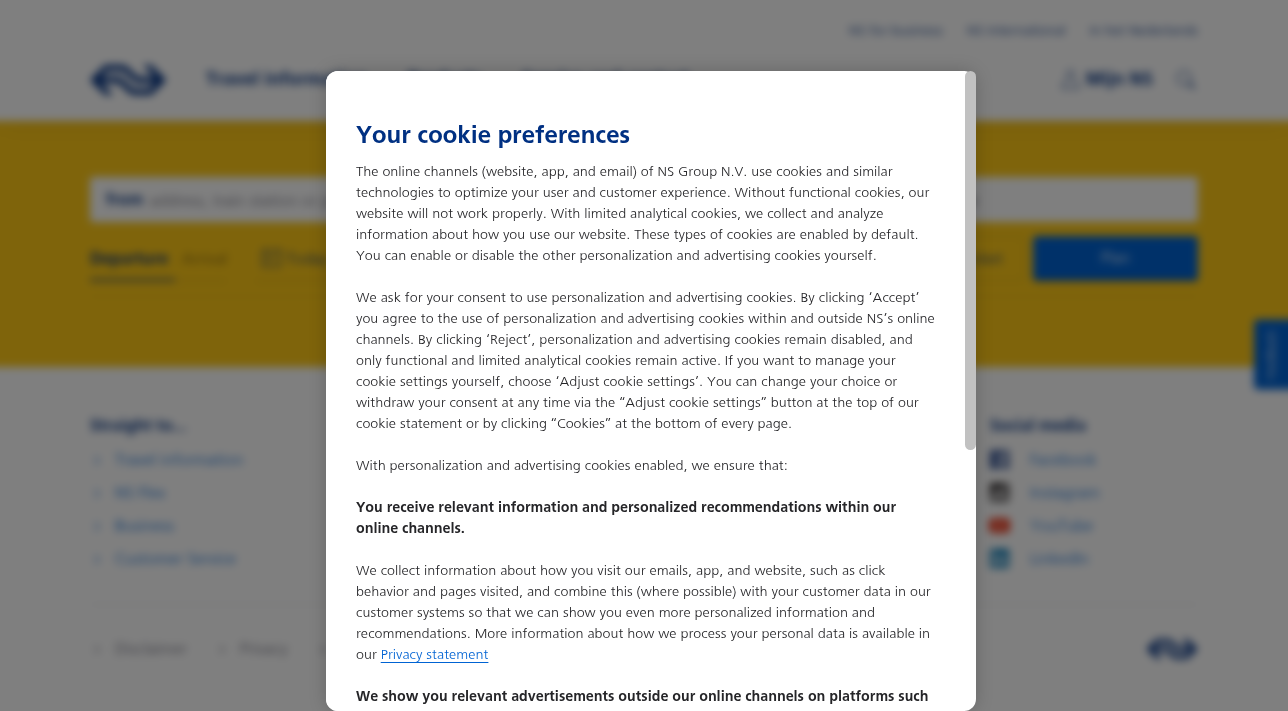

2. Dismiss the cookie dialog — click Reject (or Accept); it overlays the page on first visit.
3. Click the from combobox, browse type "<origin>", wait ~2s, then click the first suggestion labelled "Railway station" in the suggestions listbox (avoid the look-alike "Bus station" option).
4. Repeat for the to combobox.
5. Optionally set the Departure/Arrival radio, date, and time fields.
6. Click Plan (or Show Travel options). The URL rewrites itself into the canonical deep link from step 1 — capture it for reuse.
7. Wait and read results as in step 3.

Site-Specific Gotchas

• No anti-bot escalation needed. A bare session (no --verified, no --proxies) loaded the planner and returned full results across both validation iterations from a non-Dutch IP. Akamai is present (ak_bmsc cookie) but did not challenge. Don't waste budget enabling stealth/proxy unless you actually observe a 403/Access-Denied.
• The URL hash IS the state. Everything is after #/, so changing only the hash on an already-loaded planner may not re-trigger a fetch — do a full browse open of the new deep link (or browse reload) to force a fresh search.
• Wait after load. The trips XHR fires 2–5s after wait load resolves. Snapshotting too early returns the empty form. Always wait timeout 5000 (or poll the snapshot until option rows appear).
• type is the depart-vs-arrive switch, not a UI radio you must click — set it in the URL. vertrek = leave-at, aankomst = arrive-by.
• tijd is local Amsterdam time, minute precision, no timezone suffix. 2026-06-18T09:00. Adding seconds or a Z/offset can cause the SPA to fall back to "now".
• Typeahead has bus-stop look-alikes. When using the form fallback, the suggestions list shows both a Railway station and a Bus station entry for the same city name (e.g. "Amsterdam, Centraal Station" is a bus station). Always pick the one tagged Railway station.
• Supplement trains. "Intercity direct" (Amsterdam–Rotterdam–Breda HSL) and "Eurocity Direct" legs require a surcharge (observed €3.20); the option is tagged Supplement. Surface this — it changes the real price.
• Crowding & shorter-train warnings are prepended to the option text ("Shorter train, extra busy and possibly full"). Capture them as advisory metadata.
• Underlying API needs a key — see Expected Output's note. The SPA fetches https://gateway.apiportal.ns.nl/reisinformatie-api/api/v3/trips (returns 200, JSON, ~11 KB). This is NS's official, documented API (apiportal.ns.nl) and requires a registered Ocp-Apim-Subscription-Key header. If you have a free NS API key, call it directly (params below) and skip the browser entirely. Without a key, the deep-link browser path is the recommended route — the website's embedded key is not reliably extractable and reusing it would violate NS's API terms.
• Cookie dialog only appears in the form flow / first visit. Deep-link navigation renders results behind/around it without needing dismissal, but if a snapshot looks blocked, dismiss the dialog: Your cookie preferences first.

Expected Output

{
  "success": true,
  "from": "Amsterdam Centraal",
  "to": "Rotterdam Centraal",
  "search_type": "departure",
  "search_time": "2026-06-18T09:00",
  "options": [
    {
      "departure": "09:18",
      "arrival": "10:08",
      "duration": "0:50",
      "departure_track": "14a",
      "transfers": 1,
      "train_types": ["Sprinter", "Intercity direct"],
      "delay_minutes": 0,
      "crowding_note": null,
      "supplement": "€3.20"
    },
    {
      "departure": "09:36",
      "arrival": "10:48",
      "duration": "1:12",
      "departure_track": "2a",
      "transfers": 0,
      "train_types": ["Intercity"],
      "delay_minutes": 0,
      "crowding_note": null,
      "supplement": null
    }
  ],
  "error_reasoning": null
}

search_type is "departure" (depart-at) or "arrival" (arrive-by). For arrive-by queries the options' arrival values cluster at/just before search_time.

Failure shape (e.g. unresolvable station, no service on the route/date):

{
  "success": false,
  "from": "…",
  "to": "…",
  "options": [],
  "error_reasoning": "No travel options returned — station name did not resolve / no service for the requested date-time."
}

Direct-API alternative (requires a free NS API subscription key):

GET https://gateway.apiportal.ns.nl/reisinformatie-api/api/v3/trips
    ?fromStation=Amsterdam Centraal
    &originUicCode=8400058
    &toStation=Rotterdam Centraal
    &destinationUicCode=8400530
    &dateTime=2026-06-18T09:00:00
    &lang=en
    &product=OVCHIPKAART_ENKELE_REIS
Header: Ocp-Apim-Subscription-Key: <your NS apiportal.ns.nl key>

Returns structured JSON trip objects (legs, stops, fares, real-time delays) — register at apiportal.ns.nl for a key. UIC station codes are discoverable via the same portal's nsapp-stations / places-api endpoints.
