GitHub Pull Request Review Extraction

Purpose

Given a GitHub pull request URL (or owner/repo#number slug), return a single normalized JSON document containing PR metadata, the full ordered review timeline, per-file diff annotations with inline review comments, and the latest check-run / status-context results. Read-only — never click Merge, Close, Approve, Request-changes, Comment, Resolve-conversation, or any other mutation control on the rendered page, and never POST to a mutating REST/GraphQL endpoint.

When to Use

• Building a CR-summary or auto-review-digest for an inbox of open PRs.
• Snapshotting a PR's full review state for audit / compliance / retrospective use.
• Diffing two PRs (e.g., before/after a rebase) to see which review threads went stale.
• Anywhere you'd otherwise scrape github.com/.../pull/N HTML — the public REST API returns 99% of what the rendered page shows, faster and structurally.

Workflow

GitHub's public REST API at api.github.com covers everything except thread-isResolved and isCollapsed, and resolves to 7 cheap, parallelizable HTTP calls per PR. No browser, no anti-bot, no proxies required. Use the browser/Browserbase Fetch fallback only when (a) you need the resolved / outdated UI signals that REST does not expose, (b) the repo is private and the available auth token cannot reach it, or (c) GraphQL is unavailable and the REST rate-limit budget is exhausted.

1. Parse the input

Accept all four input shapes and reduce to {owner, repo, number, anchor_review_id?}:

2. Authenticate (optional but strongly recommended)

Unauthenticated rate-limit is 60 requests / hour on the core resource and 0 on GraphQL — enough for ~6 PRs/hour at the 7-calls-per-PR rate below. Authenticated raises this to 5 000/hour (Authorization: Bearer <token>). Any of the following tokens works:

• Classic PAT with repo scope (private) or no scope (public).
• Fine-grained PAT with pull_requests:read + contents:read on the target repo.
• GitHub App installation token (must be installed on the target repo).

For private repos, an auth wall without a usable token is an immediate candidate ship — REST returns 404 Not Found (NOT 403) to disguise the existence of the repo. Detect this by asserting repos/{o}/{r} returns 200 with private: true after auth is attached.

3. Fetch the 7 endpoints in parallel

Endpoint base: https://api.github.com. Send Accept: application/vnd.github+json, X-GitHub-Api-Version: 2022-11-28, and User-Agent: <your-agent-name> (UA is required and a missing UA returns 403). Paginate every list endpoint via the Link: <...>; rel="next" header; the implicit default is 30 per page, max 100 via per_page=100.

Call 1 first to learn head.sha, then fan out the rest. Calls 7a + 7b are both required for a complete picture: GitHub Actions writes to check-runs, third-party CIs may still write to the legacy combined-status surface, and many repos have both. Merge by name/context if you need to dedupe.

4. Assemble the timeline

The /issues/{n}/timeline endpoint already returns events in chronological order, but it does not carry the full payload for review submissions (only event: "reviewed" with state + submitted_at + actor) or for inline review comments (each commented entry is a top-level issue comment, not an inline review comment). Merge as follows:

1. Walk timeline and emit one event per item, keeping its natural event value as type.
2. For each reviewed event, look up the matching pulls/{n}/reviews entry by id (timeline[i].id matches reviews[j].id) to attach body and the list of inline comments whose pull_request_review_id equals that review's id. The inline-comment list comes from pulls/{n}/comments.
3. For each commented event, look up the matching issues/{n}/comments entry by id to attach the full body and edit metadata.
4. cross-referenced and connected/disconnected events carry linked-issue / linked-PR signals — there is no separate "linked issues" REST endpoint. A connected event with source.issue.pull_request === undefined is a linked issue; pull_request !== undefined is a linked PR. disconnected undoes a prior connected. Closing-keyword references in the PR body (closes #N, fixes #N) also surface as connected after the PR is merged; do not re-parse the PR body for closing keywords — let timeline events be the source of truth (post-merge they include keyword-derived links automatically).
5. Sort merged events by created_at ascending if you mix sources.

5. Assemble per-file annotations

For each files[i] from call 6:

• file.path = files[i].filename; if files[i].status === "renamed", also record file.previous_path = files[i].previous_filename.
• Parse files[i].patch into hunks. Each hunk header has the form @@ -<old_start>,<old_len> +<new_start>,<new_len> @@ <section_header>. Each subsequent line is a context line ( ), addition (+), or deletion (-).
• Attach inline review comments by matching comments[j].path === file.path AND (active comments) comments[j].position !== null, OR (outdated comments) comments[j].original_position against the original commit's diff position.
• The resolved state of a thread is not in REST. A REST-only assembly should mark every inline comment as resolved: null (unknown). To populate resolved, either (a) call GraphQL pullRequest(number: N) { reviewThreads(first: 100) { nodes { isResolved isCollapsed comments(first: 100) { nodes { databaseId } } } } } (requires auth), or (b) use the browser-fallback path in step 7 below.

6. Output

Emit the consolidated JSON per the schema in "Expected Output". Record which fields came from REST vs the rendered page in a top-level _provenance block (e.g., { "resolved_flags": "api-graphql" | "html-fallback" | "unavailable" }) so downstream consumers know how confident to be.

7. Browser fallback (Browserbase Fetch)

Use this only when (a) you need resolved / outdated UI flags and GraphQL isn't available, (b) you need to see the rendered "out-of-date branch" / merge-conflict banner that REST's mergeable_state summarizes coarsely, or (c) you need to render suggested-changes blocks that came in via inline-comment ```suggestion fences and want them post-applied to the diff.

The rendered HTML for https://github.com/<o>/<r>/pull/<n> is fetchable through browse cloud fetch <url> --proxies (~600 KB). Do not use a remote Browserbase session for this — the Fetch API is sufficient and ~50× cheaper. The relevant DOM markers:

• data-resolved="true|false" attribute on each js-resolvable-timeline-thread-container element. Sibling data-deferred-content-url="/<o>/<r>/pull/<n>/threads/<thread_id>?..." carries the GraphQL thread node id; sibling data-hidden-comment-ids="<csv-of-comment-ids>" lists the inline review comment IDs (matches pulls/{n}/comments[i].id) inside that thread. This is how you bridge REST comment-ids → thread.isResolved.
• is-outdated class on a comment container, OR position: null + non-null original_position on the REST inline comment, OR the rendered text Outdated/Show outdated. Treat any of these as outdated: true.
• js-suggested-changes-blob / class suggested-change on a code-suggestion block — the suggested replacement text appears in the comment body between ```suggestion and ``` fences (this is available via REST directly, no browser needed to parse).
• branch-action-state-clean | dirty | unstable | unknown | blocked on the merge-status container — the rendered equivalent of pulls/{n}.mergeable_state.
• <div class="merged-banner"> / <div class="branch-action-item branch-action-state-…"> for the merge / out-of-date banners.

8. GraphQL alternative (one call, requires auth)

When auth is available and REST's missing-fields are problematic, the entire payload is one pullRequest query against https://api.github.com/graphql. Key fields beyond REST:

• reviewThreads(first:100) { nodes { isResolved isCollapsed path line startLine diffSide comments(first:100) { nodes { databaseId author { login } body createdAt updatedAt outdated } } } }
• closingIssuesReferences(first:50) { nodes { number title repository { nameWithOwner } } } — definitive linked-issue list, post-merge or pre-merge.
• mergeStateStatus — finer-grained than REST's mergeable_state: CLEAN | DIRTY | BLOCKED | BEHIND | DRAFT | HAS_HOOKS | UNKNOWN | UNSTABLE.
• latestReviews(first:100) { nodes { author { login } state submittedAt body } } — already deduped to the latest review submission per author, which REST does not provide.

GraphQL cost is 1 point per query regardless of the number of nodes returned (within paginate limits), versus 7+ REST calls. Prefer GraphQL when auth is available; the REST flow above is the unauth fallback.

Site-Specific Gotchas

• Unauthenticated rate-limit is 60 requests/hour on the entire core resource, shared across all repos. A typical PR costs 7 calls (more if reviews/comments/files paginate), so plan ~6 PRs/hour without auth. The X-RateLimit-Remaining header on every response tells you exactly how much you've used; check it before fanning out.
• User-Agent header is mandatory and a missing one returns 403 Forbidden, not a more diagnostic error.
• Private repos return 404, not 403, to anonymous callers. Detect by attempting repos/{o}/{r} first with the available token; if that returns 200, the PR endpoint will too. If it returns 404 even with a token, the token lacks access — ship as candidate and document the auth wall.
• mergeable is computed lazily. The first call to pulls/{n} may return mergeable: null while GitHub schedules a test-merge. Retry once after 1–2 seconds; if still null, surface as unknown. The companion mergeable_state value (clean, dirty, unstable, blocked, behind, draft, has_hooks, unknown) is more granular than mergeable and is usually populated even when mergeable is null.
• state is open | closed — NOT merged and NOT draft. Determine merge state from the merged boolean field on the PR object, and draft state from draft: true. Many naïve clients treat state as a tri-state and miss merged-vs-just-closed.
• PR-level conversation comments live under the issues resource, not pulls. GET /repos/{o}/{r}/pulls/{n}/comments returns inline review comments only. Forgetting this is the most common single-endpoint mistake.
• Review submissions with state: COMMENTED and empty body are normal. They are containers for inline comments — emit them as part of the timeline but don't drop them as "empty noise."
• Inline-comment position: null means the comment is outdated — anchored to a line that no longer exists in the current head. Use original_position + original_commit_id + diff_hunk to render an outdated comment at its historical line. There is no explicit outdated: true field in REST; the null position IS the signal.
• Inline-comment pull_request_review_id ties each comment to its parent review submission. When the parent is a COMMENTED review with no body, that's a single-comment drive-by review — completely normal, common in active codebases.
• REST has no resolved / isResolved field on review comments or review threads. This is the single most painful API gap. The two reliable sources: (a) GraphQL pullRequest.reviewThreads.nodes.isResolved (requires auth); (b) rendered HTML data-resolved="true|false" on the thread container (Browserbase Fetch path). Do not infer "resolved" from "no replies after N hours" or from in_reply_to_id patterns — neither is correlated.
• pulls/{n}/files truncates patches over ~5 000 lines per file (patch becomes null even when additions + deletions > 0). It also truncates the file list at 3 000 files total — files array maxes there even with pagination. For very large PRs, fall back to repos/{o}/{r}/compare/{base.sha}...{head.sha} which returns the full diff in a single response (subject to the same truncation but expressed at the response level via files and truncated: true).
• Timeline events for committed carry the commit message and SHA but NOT the file changes — call pulls/{n}/commits separately if you need per-commit deltas. Most callers don't.
• head.repo is null when the source fork has been deleted (common on old merged PRs). The head.ref and head.sha are still populated; just don't expect head.repo.full_name to exist.
• Force-pushes appear as head_ref_force_pushed events carrying before_sha and after_sha. Inline comments anchored to the before_sha become outdated post-force-push (REST surface: position: null, original_commit_id: <before_sha>).
• Check-runs vs status-contexts split. GitHub Actions and the modern Checks API write to commits/{sha}/check-runs. Older third-party CIs (Travis, CircleCI ≤ v1, custom webhooks) still write to the legacy commits/{sha}/status endpoint. Always query both and merge by name/context; treating either as the sole truth misses CI signals routinely.
• The mockingbird preview header on the timeline endpoint is no longer required — Accept: application/vnd.github.mockingbird-preview+json works but application/vnd.github+json returns the same data. Default works.
• GraphQL is rate-limited separately (5 000 points/hour authenticated; 0 unauthenticated). A pullRequest query is 1 point regardless of node count. Strongly preferred over REST when you have auth.
• Reviewer "approved" state is per-submission, not per-user. The same reviewer can approve, then submit a follow-up COMMENTED review without re-approving. The PR-level "approved by N" rendered on the UI reflects the latest submission state per user — GraphQL latestReviews gives you that; REST pulls/{n}/reviews returns every submission in order and you have to dedupe by user.id taking the last entry.
• Suggested-changes blocks are plain markdown inside the comment body: a fenced code block tagged ```suggestion. No special API field — parse the comment body for the fence, and treat each suggestion block as a replacement for the lines anchored by the comment (line/start_line on the inline comment). The rendered "Apply suggested changes" button is UI-only and not a separate object.
• closes #N / fixes #N keyword parsing of the PR body is unreliable as a "linked issues" source. Use the timeline connected / disconnected events instead — they're authoritative and survive body edits. Post-merge, GitHub auto-creates connected events from the keywords, so you don't need to re-parse anyway.

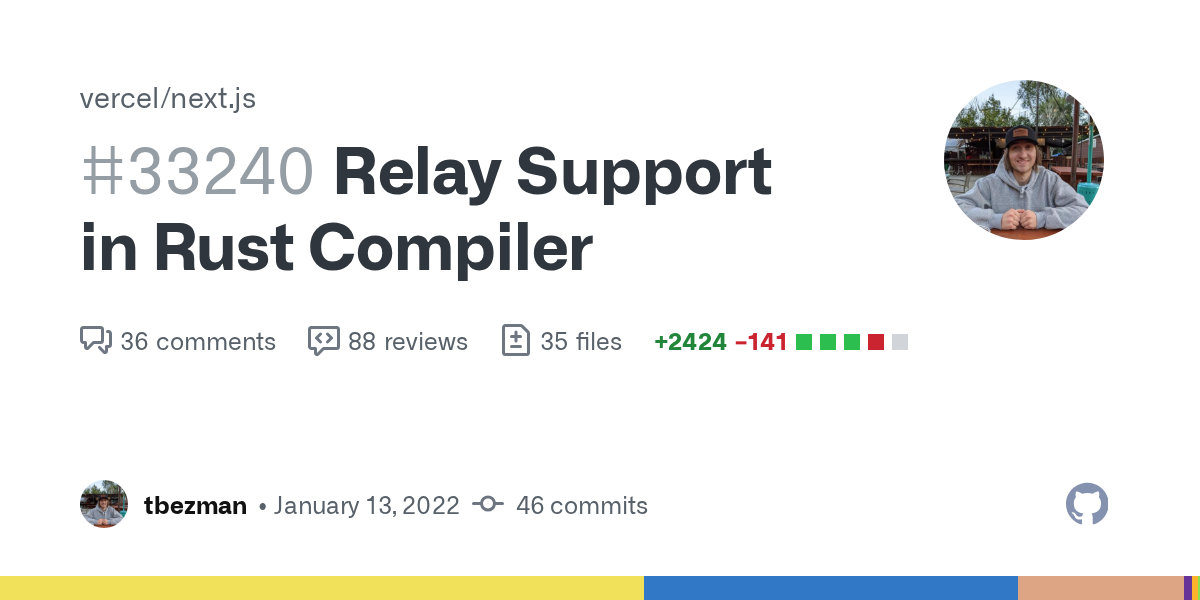

• The OpenGraph card endpoint opengraph.githubassets.com/<cache-key>/<o>/<r>/pull/<n> returns a 1200×600 PNG summary of the PR (title, author, comments/reviews/files counts, +/− line counts, commit count) without any auth. Useful for marketplace thumbnails and quick previews; not a substitute for the structured JSON above. Rate-limited via the <cache-key> path component — vary it per request, and prefer --proxies on the Browserbase Fetch (we saw 429 Too Many Requests on bare-IP fetches but 200 OK through residential proxies).
• No browser-driven Browserbase session is needed for any of this. The REST API + browse cloud fetch --proxies (for the rendered-HTML fallback) covers 100% of the surface. Spinning up a --remote session and navigating the page is strictly slower, costlier, and adds zero coverage versus the Fetch API.

Expected Output

{
  "input": {
    "owner": "vercel",
    "repo": "next.js",
    "number": 33240,
    "anchor_review_id": null
  },
  "pull_request": {
    "number": 33240,
    "title": "Relay Support in Rust Compiler",
    "html_url": "https://github.com/vercel/next.js/pull/33240",
    "state": "closed",
    "draft": false,
    "merged": true,
    "mergeable": null,
    "mergeable_state": "unknown",
    "merge_commit_sha": "abc123…",
    "created_at": "2022-01-13T03:55:00Z",
    "updated_at": "2022-01-25T14:02:11Z",
    "closed_at": "2022-01-25T14:02:09Z",
    "merged_at": "2022-01-25T14:02:09Z",
    "author": {
      "login": "tbezman",
      "avatar_url": "https://avatars.githubusercontent.com/u/6754223?v=4",
      "html_url": "https://github.com/tbezman"
    },
    "base": { "repo": "vercel/next.js", "ref": "canary", "sha": "…" },
    "head": { "repo": "tbezman/next.js", "ref": "relay-plugin", "sha": "464dd97…" },
    "labels": [{ "name": "type: next", "color": "…" }],
    "assignees": [],
    "requested_reviewers": { "users": [], "teams": [] },
    "linked_issues": [{ "owner": "vercel", "repo": "next.js", "number": 30000, "title": "…" }],
    "milestone": null,
    "stats": { "commits": 46, "additions": 2424, "deletions": 141, "changed_files": 35 }
  },
  "timeline": [
    {
      "type": "committed",
      "actor": "tbezman",
      "timestamp": "2022-01-12T02:37:07Z",
      "payload": { "sha": "2aaa426…", "message": "Add support for relay compiler imports" }
    },
    {
      "type": "review",
      "actor": "timneutkens",
      "timestamp": "2022-01-13T13:07:45Z",
      "payload": {
        "review_id": 851227831,
        "state": "approved",
        "body": "LGTM",
        "comments": [
          {
            "id": 783613597,
            "path": "package.json",
            "line": 150,
            "side": "RIGHT",
            "body": "nit: alphabetize",
            "outdated": false,
            "resolved": true,
            "diff_hunk": "@@ -59,6 +59,7 @@…"
          }
        ]
      }
    },
    {
      "type": "head_ref_force_pushed",
      "actor": "tbezman",
      "timestamp": "2022-01-15T10:11:22Z",
      "payload": { "before_sha": "…", "after_sha": "…" }
    },
    {
      "type": "merged",
      "actor": "timneutkens",
      "timestamp": "2022-01-25T14:02:09Z",
      "payload": { "commit_sha": "abc123…" }
    }
  ],
  "files": [
    {
      "path": "docs/advanced-features/compiler.md",
      "previous_path": null,
      "status": "modified",
      "additions": 13,
      "deletions": 0,
      "hunks": [
        {
          "header": "@@ -94,6 +94,19 @@ const customJestConfig = {",
          "old_start": 94, "old_lines": 6, "new_start": 94, "new_lines": 19,
          "lines": [
            { "side": "context", "old": 94, "new": 94, "text": " const customJestConfig = {" },
            { "side": "add",     "old": null, "new": 95, "text": "### Relay" }
          ]
        }
      ],
      "inline_comments": [
        {
          "id": 783613597,
          "author": "timneutkens",
          "body": "nit: alphabetize",
          "line": 150, "side": "RIGHT",
          "outdated": false, "resolved": true,
          "created_at": "2022-01-13T13:08:11Z"
        }
      ]
    }
  ],
  "checks": [
    {
      "name": "build",
      "kind": "check_run",
      "status": "completed",
      "conclusion": "success",
      "required": null,
      "details_url": "https://github.com/vercel/next.js/runs/12345",
      "head_sha": "464dd97…",
      "app": "github-actions"
    },
    {
      "name": "ci/circleci: test",
      "kind": "status_context",
      "status": "completed",
      "conclusion": "success",
      "required": null,
      "details_url": "https://circleci.com/…",
      "head_sha": "464dd97…",
      "app": null
    }
  ],
  "_provenance": {
    "metadata":         "rest:GET /repos/{o}/{r}/pulls/{n}",
    "reviews":          "rest:GET /repos/{o}/{r}/pulls/{n}/reviews",
    "inline_comments":  "rest:GET /repos/{o}/{r}/pulls/{n}/comments",
    "issue_comments":   "rest:GET /repos/{o}/{r}/issues/{n}/comments",
    "timeline":         "rest:GET /repos/{o}/{r}/issues/{n}/timeline",
    "files":            "rest:GET /repos/{o}/{r}/pulls/{n}/files",
    "checks":           "rest:GET /repos/{o}/{r}/commits/{sha}/check-runs + /status",
    "resolved_flags":   "graphql:pullRequest.reviewThreads.isResolved | html-fallback | unavailable",
    "linked_issues":    "rest:timeline.connected | graphql:closingIssuesReferences"
  }
}

Alternate output shapes

• Auth-walled private repo (token cannot reach):

  { "success": false, "reason": "auth_required", "owner": "...", "repo": "...", "number": ... }


• PR does not exist:

  { "success": false, "reason": "not_found", "owner": "...", "repo": "...", "number": ... }


• Rate-limit exhausted before assembly completed:

  { "success": false, "reason": "rate_limited", "retry_after_seconds": 3600, "partial": { ... } }
