Stargazing Viewing Conditions (Clear Sky Chart)

Purpose

Given a location, determine the best stargazing time slots for tonight and the next couple of nights from cleardarksky.com's "Clear Sky Chart" (the Allan Rahill / Canadian Meteorological Centre astronomy forecast), and surface what to watch out for (clouds, bright moon, poor transparency/seeing, wind, smoke, dew). The chart's famous colored grid is also fully encoded as text inside the page's image-map <area title="..."> attributes — so the entire task is solvable with a single HTTP fetch of the chart page and a parse, with no image/vision reading, no browser, no auth, and no proxy. Read-only.

When to Use

"Is tonight good for stargazing near {place}? When is it best?"
Planning an observing / astrophotography session over the next 2–3 nights.
Deciding go / no-go for a star party, and flagging dew, moonlight, or smoke risk.
Any flow that needs hourly cloud / transparency / seeing / darkness / moon data for an observing site in North America.

Workflow

The recommended method is a plain fetch of the chart page. The colored GIF is decorative — do not OCR it; every hour of the forecast is duplicated as readable text in the page's HTML image map.

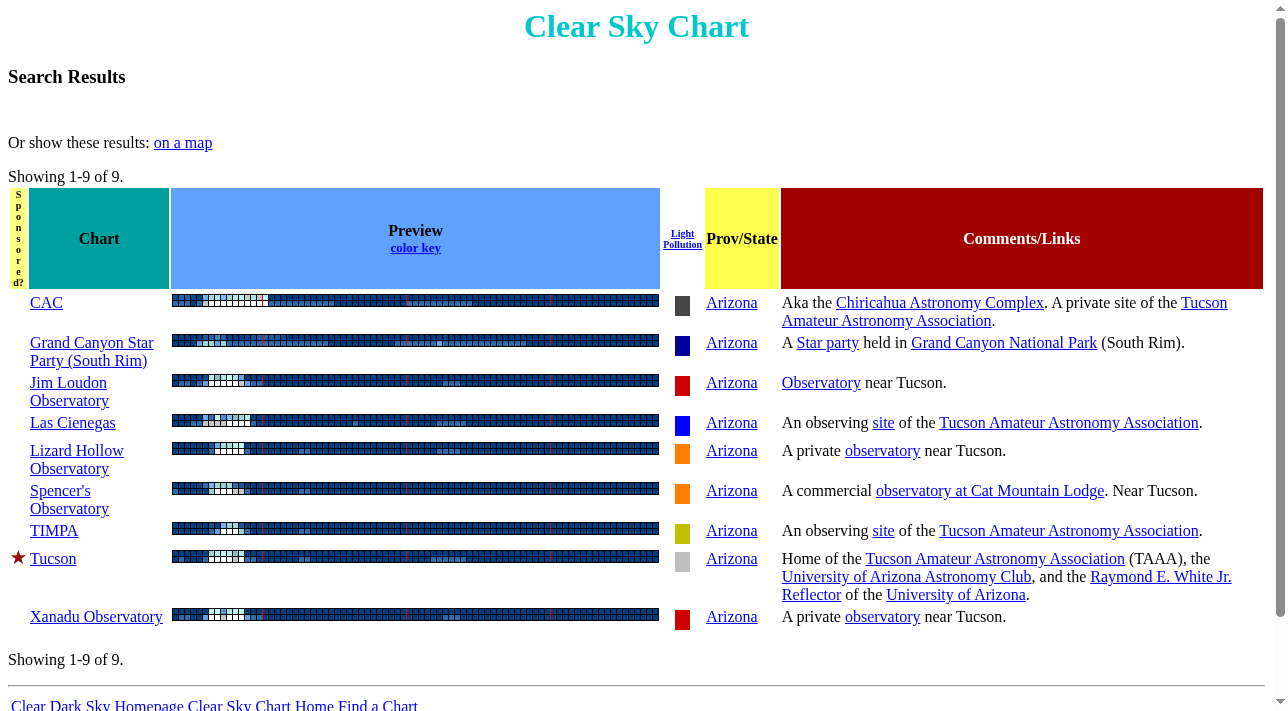

1. Resolve the chart key for the location

Each chart has a short key (e.g. SpcrObAZ, ChrSprPkPA, Ottawa). Find it with the find_chart.py CGI (returns HTML; links point to ../c/<KEY>key.html):

By name (most common):
```
GET https://www.cleardarksky.com/cgi-bin/find_chart.py?type=text&keys=<URL-ENCODED NAME>&Mn=dobsonian&doit=Find
```
Parse result anchors matching href=../c/([A-Za-z0-9]+)key\.html>\s*<name>. There are ~6,300 charts (observatories, parks, towns) across North America; an exact city may map to a nearby named observing site — pick the closest/best match and note it.
By coordinates (when no named site matches): ?type=llmap&olat=<lat>&olong=<lon>&unit=1 (decimal degrees) returns nearby charts.
By request IP: ?type=geoLocate.

The Mn= param is cosmetic. A trailing ?1 on ...key.html links is just a cache-buster.

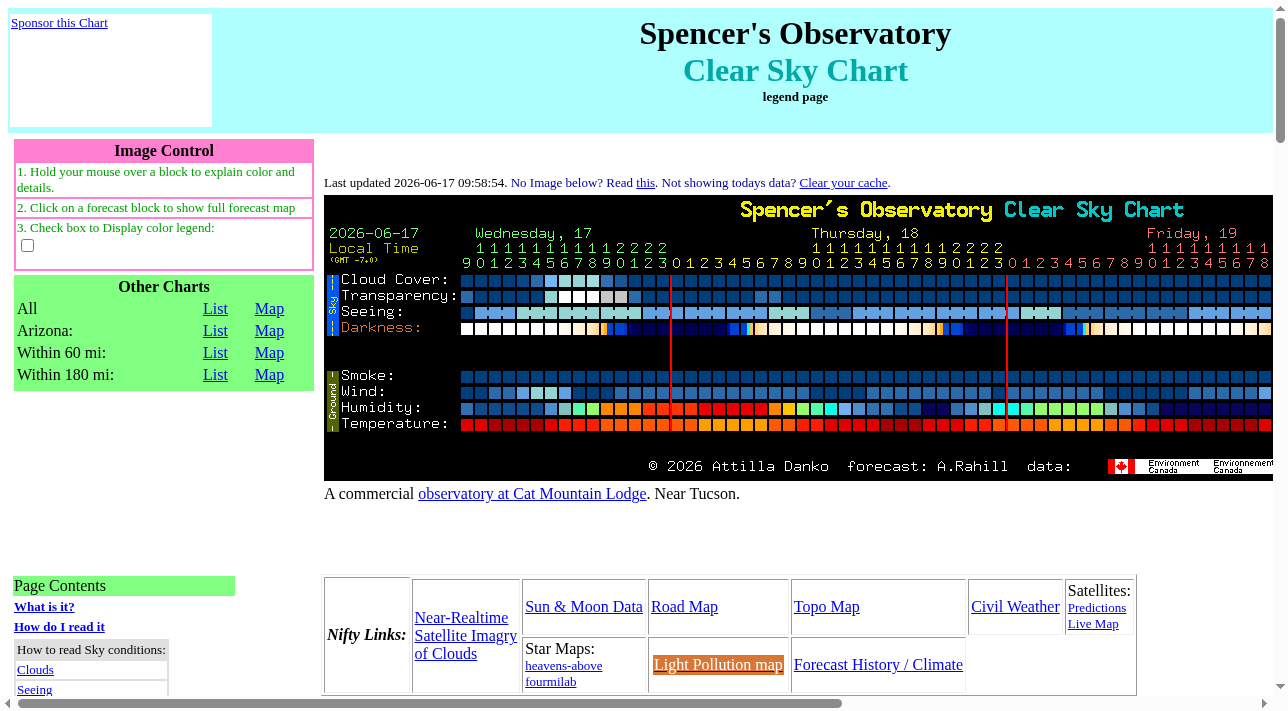

2. Fetch the chart page

GET https://www.cleardarksky.com/c/<KEY>key.html

Returns 200, plain HTML, no cookies/auth/anti-bot. Extract three things from the HTML:

tz offset → from the tz=-X.X token in the "Sun & Moon Data" link.
Model run date (YYYYMMDD, run at 12:00 UTC) → from any f.php?p=YYYYMMDD… href.
Last updated YYYY-MM-DD HH:MM:SS (local) → freshness check.

3. Parse the image-map cells

Each <area> carries the forecast value in its title and (for the weather rows) a code in its href.

Hourly weather rows — one cell per hour, e.g. <area title="21:00: Clear (12Z+9hr)" coords="..." href="../f.php?p=202606173C00912SpcrObAZ">. The letter after the date+server-digit in p= identifies the quantity:

code	row	example values
`C`	Cloud Cover	`Clear`, `10%`…`90% covered`, `Overcast`
`T`	Transparency	`Transparent`, `Above Average`, `Average`, `Below Average`, `Poor`, `Too cloudy to forecast`
`S`	Seeing	`Excellent 5/5` … `Bad 1/5`, `Too cloudy to forecast`
`W`	Smoke	`No Smoke`, `…µg/m³`
`D`	Wind	speed range (e.g. `9 to 18 km/hr`)
`H`	Humidity	`%` range
`R`	Temperature	temp range

Darkness / Moon row — finer 10-minute cells, NO f.php href: <area title="22:00 Limiting Mag:5.9, SunAlt: -24.4°, MoonAlt 3.3°, MoonIllum 13%" coords="...">. This gives, per 10 min: limiting magnitude (sky darkness), Sun altitude, Moon altitude, Moon illumination %.

4. Build the timeline and align rows

Absolute UTC of an hourly cell = (model-run date at 12:00 UTC) + Nhr (the (12Z+Nhr) age). Local time = UTC + tz. The displayed H:MM is already local to the site — exactly what the stargazer wants.
Align the rows by their column x-coordinate (coords="x,…"), NOT by forecast age. Different rows use slightly different age bases (e.g. the Seeing row starts at 12Z+3hr while Cloud starts at 12Z+4hr). Column x is the single source of truth that the same time column lines up across all rows.
For each hourly column, attach the Sun/Moon/limiting-mag from the darkness cell with the nearest x.

5. Score and group "best" slots, per night

A good observing hour = dark (SunAlt below ≈ −12°; astronomical-dark is below −18°) AND Cloud Clear/10–20% covered AND Transparency Average or better AND Seeing Average 3/5 or better. Bonus when the Moon is below the horizon (MoonAlt < 0) or illumination is low. Group consecutive good hours into local-time ranges and bucket them by the night they belong to (hours after local noon, plus the early-morning hours of the next date, form one "night"). The chart spans ≈81 hourly cells (~3.4 days) → it always covers tonight + the next 2–3 nights.

6. Emit warnings

Flag: bright Moon up during dark hours (high MoonIllum with MoonAlt > 0); Seeing dips to Poor/Bad; Transparency Below Average/Poor; high Wind; any Smoke; very high Humidity (dew/frost risk on optics).

Browser fallback

If direct fetch is unavailable, a remote session works (verified — $1.58, 15 turns):

browse open "https://www.cleardarksky.com/c/<KEY>key.html" --remote --session "$sid"
browse snapshot --remote --session "$sid"

The <area title> cells surface as StaticText nodes in the accessibility tree, so the same parse applies. Do not try to read the colored GIF visually, and don't bother with browse get text on the image — the data lives in the image-map titles, which the snapshot exposes but get text body does not.

Site-Specific Gotchas

The data is in image-map <area title> text, not only the color GIF. This is the whole trick — never OCR/vision the chart image; parse the titles.
Align rows by column x-coordinate, never by forecast age. The Seeing row's age base is offset by one hour vs. the other rows (12Z+3hr vs 12Z+4hr); age-keying silently misaligns Seeing (and potentially others) by a column.
Hourly title format is H:MM: VALUE (12Z+Nhr) — there are TWO colons. When capturing the value, skip past the H:MM: time prefix or you'll capture 00: Clear instead of Clear.
The server digit before the quantity code varies. In p=... the code is preceded by a server id that is 1 for some charts and 3 for others (…1C004… vs …3C004…). Match \d{8}\d([A-Z])\d{5}, do not hardcode 1.
The Darkness/Moon row has no f.php href and its y-coordinate differs between charts. Identify it purely by the Limiting Mag:…, SunAlt:…, MoonAlt …, MoonIllum …% title pattern, and x-align it to the hourly columns. It is at 10-minute resolution while the weather rows are hourly.
Times are LOCAL to the observing site, derived from the tz=-X.X token; the model run is 12:00 UTC on the date in the f.php?p= param. Don't assume the first cell is 12:00 local — for a UTC−7 site the first cell is 09:00.
Wind/Temperature units depend on the chart's units setting (imperial vs metric → mph/°F vs km/hr/°C). The page declares it in a units = "…" JS var; read the actual title text rather than assuming a unit.
The Smoke row often has fewer cells (shorter forecast horizon) than the other rows — expect gaps; treat missing smoke as "No Smoke / unknown".
No free machine-readable live feed. The site sells CSV archives, but those are historical only (the homepage samples run 2016–2020) and behind a fee. There is no public live JSON/CSV API — the chart page's image-map text is the live data source.
No anti-bot, no auth, no proxy. Direct fetch/curl of both find_chart.py and /c/<KEY>key.html return 200. The pages carry NOARCHIVE/no-cache meta and Google Analytics, but content is fully open. The pre-run probe showed no anti-bot, and the successful run used a bare (non-verified, non-proxied) session.
Darkness scale reference: SunAlt < −18° = astronomical night (darkest); −12° to −18° = nautical twilight; Limiting Mag higher = darker sky (≈6+ excellent, negative = daylight); MoonAlt > 0 = moon above horizon washing out faint objects; MoonIllum is the lunar phase (% illuminated).
Forecast horizon ≈ 81 hours (~3.4 days) → reliably covers "tonight + the next couple of nights." Forecast skill degrades with age; trust the first night most.

Expected Output

{
  "success": true,
  "location": "Spencer's Observatory",
  "chart_key": "SpcrObAZ",
  "tz": "UTC-7",
  "model_run_utc": "2026-06-17T12:00:00Z",
  "last_updated_local": "2026-06-17 09:58:54",
  "nights": [
    {
      "night": "2026-06-17",
      "best_slots": ["22:00-04:00"],
      "conditions": {"cloud": "Clear", "transparency": "Transparent", "seeing": "Average 3/5", "limiting_mag": 5.9},
      "moon_illum_pct": 16,
      "moon_up_during_dark": true,
      "warnings": ["High humidity 80-90% — dew risk on optics"]
    },
    {
      "night": "2026-06-18",
      "best_slots": ["21:00-04:00"],
      "conditions": {"cloud": "Clear", "transparency": "Transparent", "seeing": "Average 3/5 (Good 4/5 by 04:00)"},
      "moon_illum_pct": 25,
      "moon_up_during_dark": true,
      "warnings": ["Seeing dips to Poor 2/5 01:00-03:00"]
    },
    {
      "night": "2026-06-19",
      "best_slots": ["21:00-04:00"],
      "conditions": {"cloud": "Clear", "transparency": "Transparent", "seeing": "Good 4/5", "limiting_mag": 5.5},
      "moon_illum_pct": 35,
      "moon_up_during_dark": true,
      "warnings": []
    }
  ],
  "best_overall_night": "2026-06-19",
  "error_reasoning": null
}

Outcome shapes:

Good viewing — one or more best_slots per night (local-time ranges), as above.

No good window (clouds/poor conditions during dark hours) — chart parsed fine, but a night has clear conditions failing the dark-hour test:

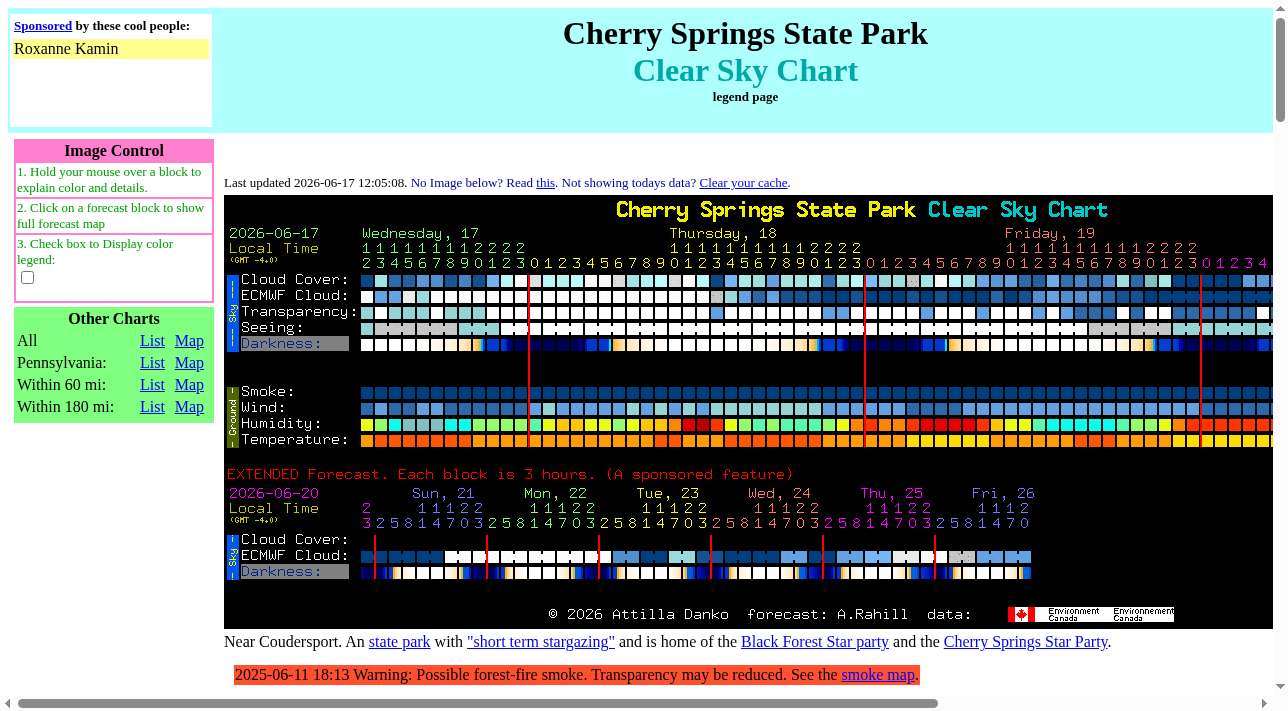

{"success": true, "location": "Cherry Springs State Park", "chart_key": "ChrSprPkPA",
 "nights": [{"night": "2026-06-17", "best_slots": [], "moon_illum_pct": 15,
 "warnings": ["Overcast / poor transparency most of the night", "High humidity — dew risk"]}],
 "error_reasoning": null}

No chart found for the location:

{"success": false, "location": "<input>", "chart_key": null,
 "error_reasoning": "No Clear Sky Chart matched; try find_chart.py llmap by lat/long for the nearest site."}
